◆成品特性 Product features
1. 設計制作高大上,樣貌形象,節能目的好;
2. 可變式風暴離心分離設備,能將該用金剛石工具與很小煙塵離心分離,好的金剛石工具不斷操作;
3. 主耍零主件用優秀國外器件,食用保修期長;
4. 生產制作鑄件外層不規則;
5. 多功位設計;運行員可與此同時運行噴砂。結合客服業務需求,先選擇全自動改手動或全自動 ;可按加盟商標準訂做!
1. Novel design , beautiful shape, good environmental protection effect;
2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;
3. The main components uses the high quality import parts, long service life;
4. Machining surface evenly;
5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.
◆支持超范圍 Applicable scope
的板材,電子設備機殼,車載音響后蓋板,雞蛋三明治烤盤等空間圖形及方體鏜孔的噴砂加工生產。
Plate, the computer case, music panels, sandwich baking dish wait for plane and workpiece of sandblasting processing.
◆重要技術性參數設置 Main technical parameters
|
產品具體型號 Model |

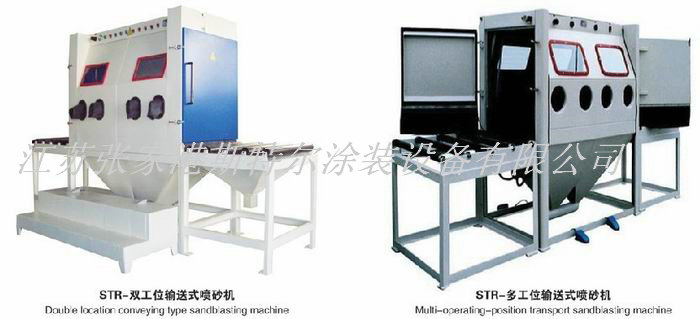

STR-多工位輸送式噴砂機 |
|
空機寬度 Complete machine size(mm) |
3000×1000×1700 |
|
工做個人空間 Work space(mm) |
2000×1000×800 |
|
外運輸尺碼 Conveying the size(mm) |
500×1000×1000(2件) |
|
濾塵箱尺碼 Dedust box sizes(mm) |
600×600×1800 |
|
分開器交流電動機 Separator motor |
220V 50HZ 550W |
|
分離器風速 Separator air volume |
8.5m3/min |
|
擠壓氣氛源 Compressed air source |
2-8bar(kg/cm2) |
|
噴槍 Spray gun |
2把 |
|
照明 Floodlight |
兩盞30W防爆型燈 |
|
工具容量 Machine weight |
550kg |
