液體噴砂機系列
◆產品的結構特征 Product features
1.更大的糾正了粉層對的環境的感染和對施工工人良好的為害;
2.做工作辦法遲鈍,工序基本參數可變性,能適用于不一樣布料材質和不一樣精密儀器零件及運轉情況的光飾制造想要;
3.在操作整個過程中磨料磨具配置用到,使用量小;
4.主要發動機零件采用使用期長;
5.泡沫塑料鋼整殼開發,手機防滲水防電經久耐用。
1. Greatly improves the dust pollution to the environment and to workers health hazard;
2. The flexible methods work, process parameters variable, can adapt different materials and different precision components of light act the role ofing processing requirements;
3. In the process of operation abrasive recycling consumption, little;
4. The main components of long service life;
5. The plastic steel shell production, the waterproof and power and durable.
◆可用超范圍 Applicable scope
光學五金配件類,ABSpp塑料,pvc板材,硅膠粘合劑等類件或生產技術品的噴砂預解決、啞光解決、光飾激光加工、去掉油漬等。
Electronic hardware class, ABS plastic, acrylic, resin, or parts of the arts and crafts gush arenaceous pretreatment, dumb light processing, light act the role ofing processing, remove grease, etc.
◆主要新產品參數值 Main technical parameters
|

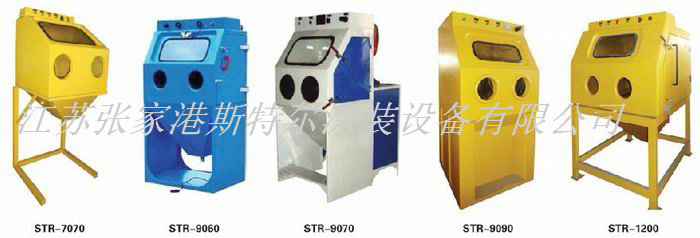

器機款式 Model |
STR-7070 |
STR-9060 |
STR-9070 |
STR-9090 |
STR-1200 |
|
機床寬度 Complete machine size(mm) |
700×700×1750 |
900×650×1680 |
900×700×1850 |
900×900×1780 |
1230×1200×1850 |
|
崗位室內空間 Work space(mm) |
690×680×670 |
900×630×810 |
900×700×650 |
870×880×800 |
1220×1200×850 |
|
正門厚度Main gate size(mm) |
530×330 |
550×650 |
600×670 |
630×700 |
975×660 |
|
噴 槍 Spray gun |
一把刀 |
一個 |
七把 |
一回 |
一次 |
|
照 明 Floodlight |
一壺60W防震燈 |
一壺60W防爆型燈 |
一盞盞60W防暴燈 |
一壺60W防爆型燈 |
一杯茶60W防震燈 |
|
砂 泵 Sand pump |
這臺,馬力1.5KW |
一部,功效1.5KW |
一輛,工作功率1.5KW |
一架,效率1.5KW |
兩臺,額定功率1.5KW |
|
電 源 Power |
單相電220V討論會電 |
220V220V溝通交流電 |
三相變頻器220V討論電 |
兩相電220V交談電 |
三相變頻器220V交流會電 |
|
擠壓水汽源 Compressed air source |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
