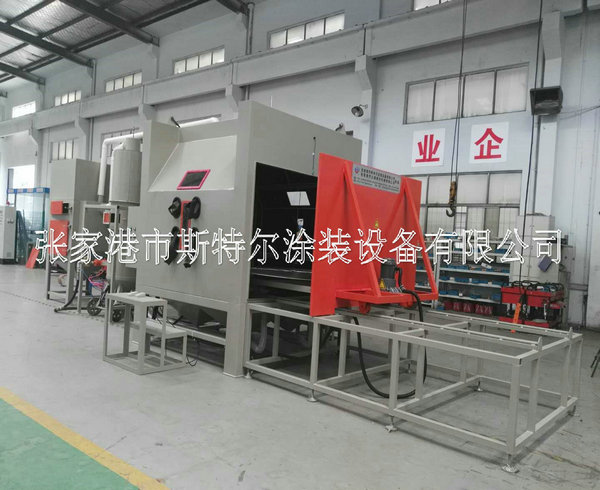

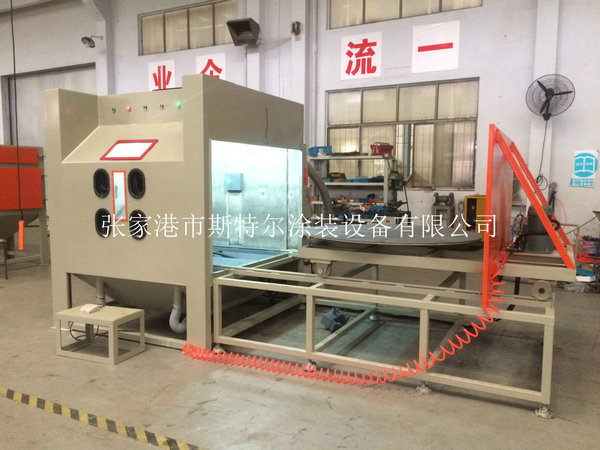

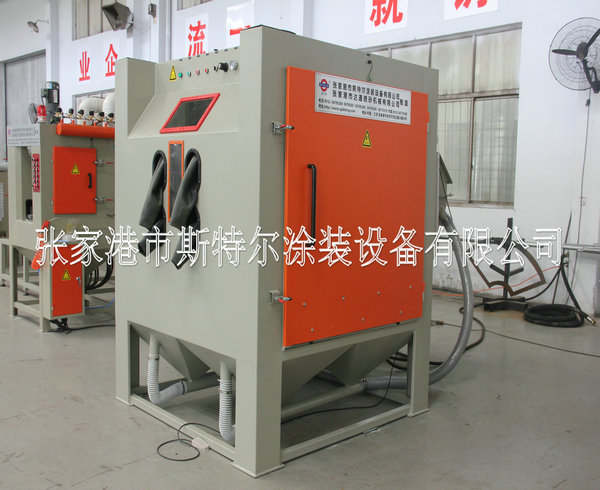

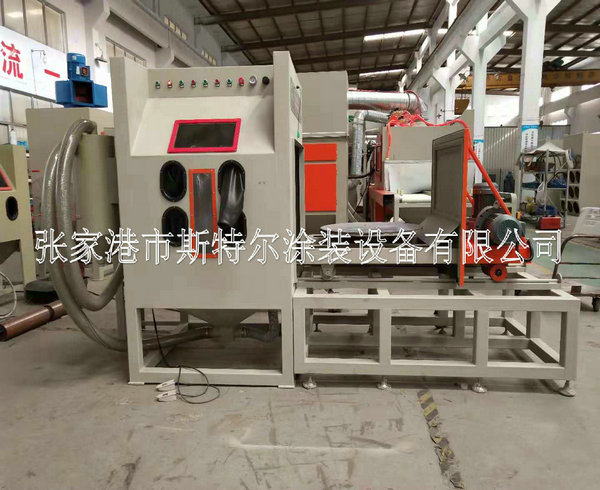

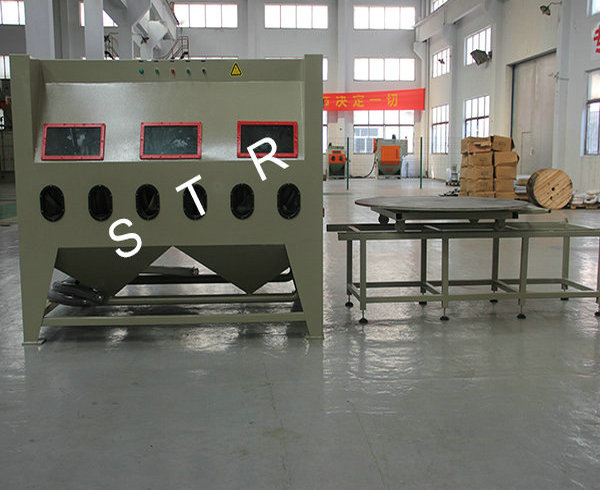

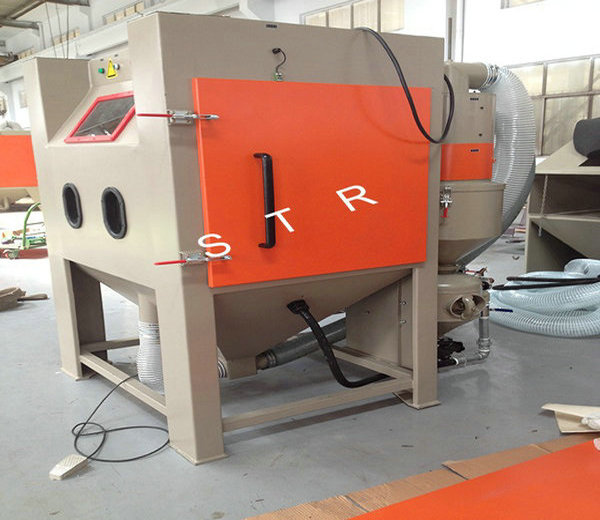

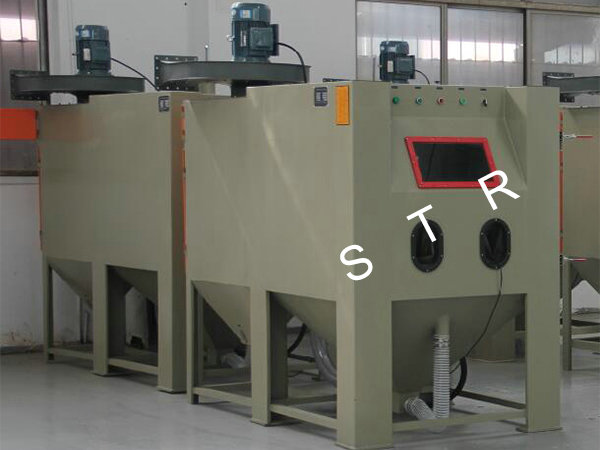

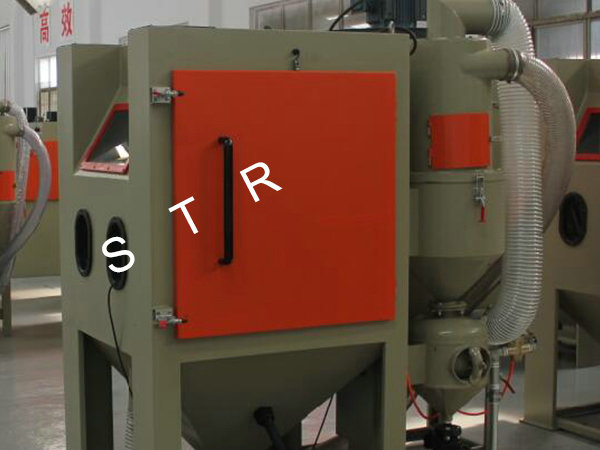

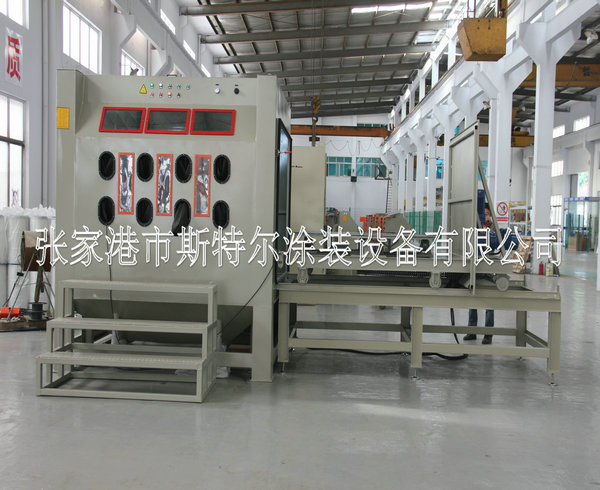

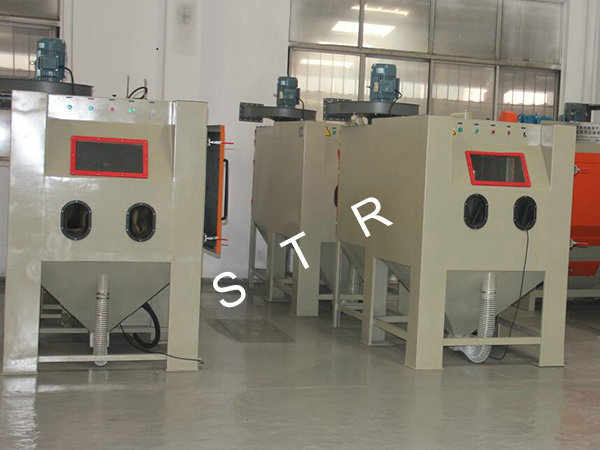

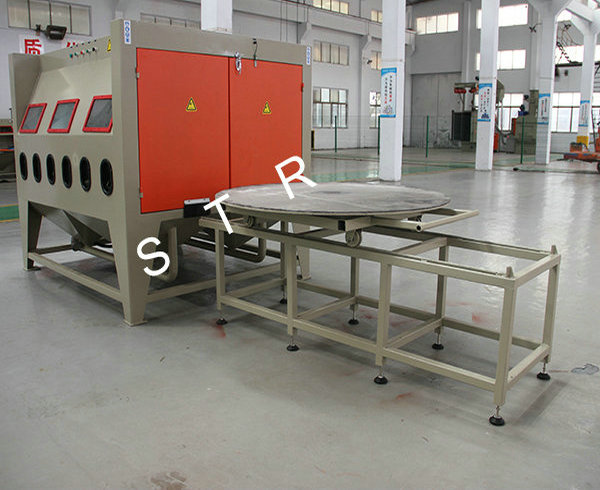

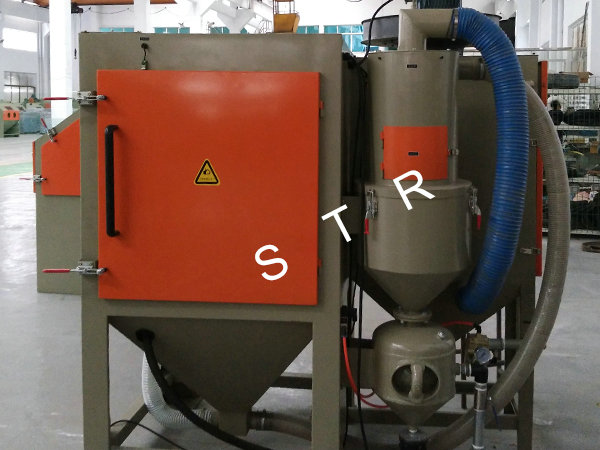

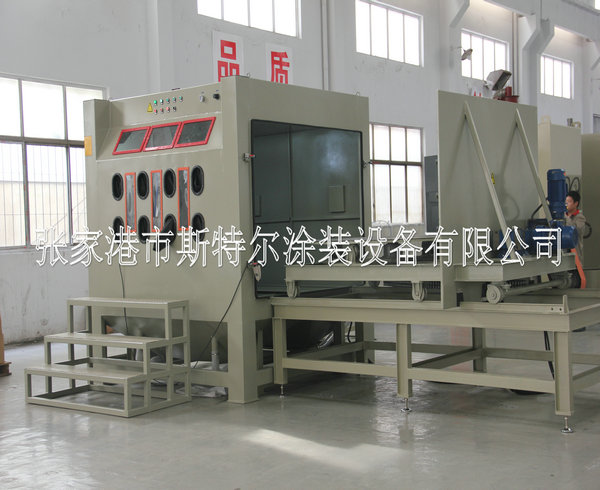

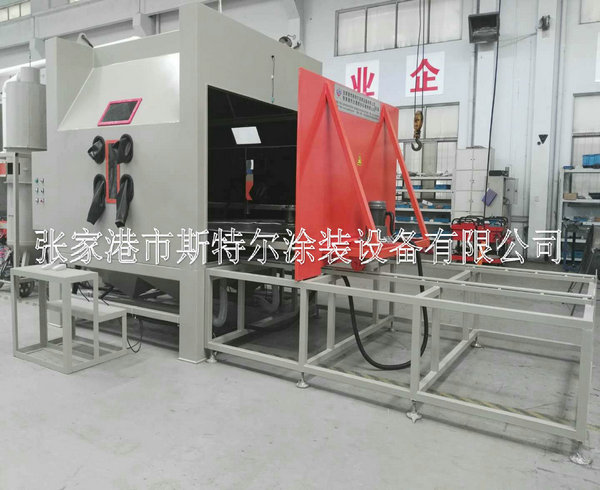

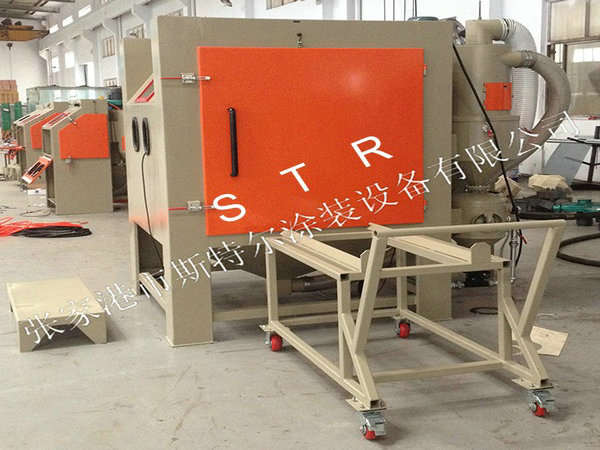

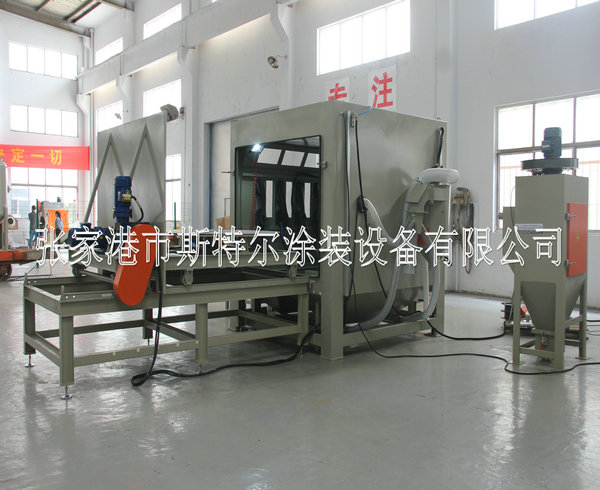

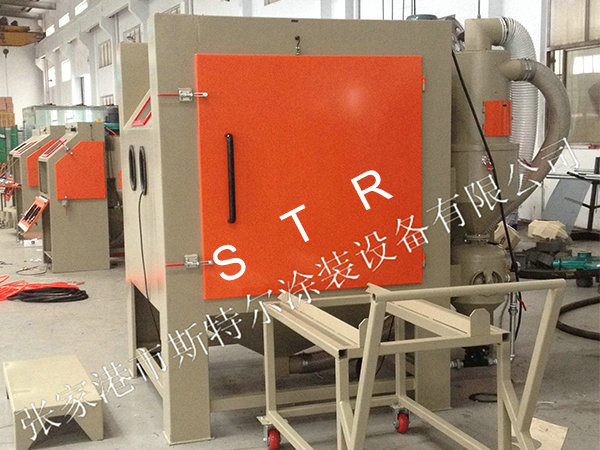

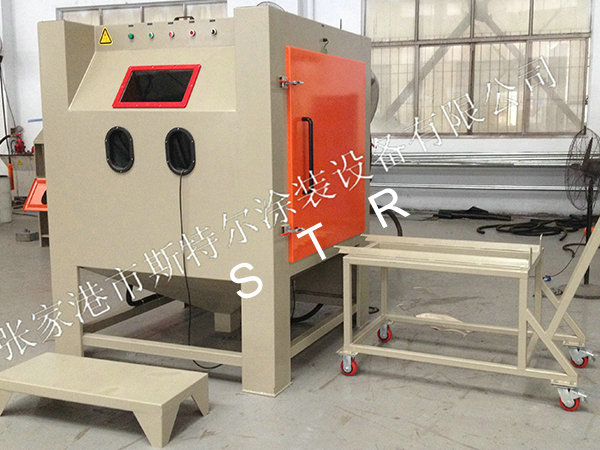

◆物品優勢特點 Product features(請往左邊瀏覽訪問產生太大的量案列照片集供考慮)
噴砂機主要用于電鍍、噴漆、噴涂等所有被覆蓋加工前噴砂處理;舊樣翻新清洗;金屬制品及塑膠、水晶、玻璃等表面痕跡消除,啞光霧面處理,使產品表面提升檔次;機加工零件微小毛刺去除;增加金屬件表面硬度,消除應力如彈簧、機加工刀具等;金屬制品及非金屬制品表面刻蝕圖案、文字及防滑處理,如大理石、印章、手柄防滑等。本機應用范圍:適用于大量中小型一般工件及高硬度工件的快速噴砂。如發動機配件、閥門、熱處理工件等。該機型設計新穎,結構科學合理,操作方便,加工性能優越;噴砂速度快,撞擊點深。
Features: Sandblasting machine is mainly used in electroplating, paint, coating area to-be-covered before piating; Old way of refurbished cleaning; Metal products and plastic, crystal, glass surface trace eliminate scattered, dumb, surface process to enhance the grade of the product's surface; Machining parts tiny burrs purify; Increase the metal surface hardness, eliminate stress such as spring, mechanical cutters, etc.; Metal and non-metai products surface etching pattern, writing and prevent slippery processing, such as marble, seals, and handle prevent slippery, etc. The machine is applied the range: applicable to small and medium-sized general of workpiece and high hardness workpieces quickly sandblasting. Such as engine fittings, valves, heat treatment workpiece, etc. This machine has novel, scientific design and reasonable structure, convenient operation, processing superior performance; Gush arenaceous speed, the impact point at deep.
◆適合範圍 Applicable scope
光電五金配件類,ABS塑膠,pvc板材,塑料模。中重型產品、設計件、聚酯樹脂等產品或工序品噴砂。
Applicable scope: electronic hardware class, ABS plastic, acrylic, resin, workpiece or handicraft sandblasting
◆主要技藝性能指標 Main technical parameters供決定性實際與業務部門保持聯系
|
POS機類型 Model |
STR-9070 |
STR-9080 |
STR-1010 |
STR-1212 |
|
工作上艙外形尺寸 Internal size(mm) |
900×700×790 |
900×800×700 |
1000×1000×670 |
1180×1180×980 |
|
整個設備規格尺寸 Complete machine size(mm) |
900×700×1780 |
950×850×1720 |
1000×1000×2100 |
1200×1200×2580 |
|
收塵箱規格尺寸 Dedust box sizes(mm) |
600×600×1680 |
600×600×1680 |
600×600×1680 |
800×800×1780 |
|
電源開關 Power |
220V 50Hz |
220V 50Hz |
220V 50Hz |
220V 50Hz |
|
機器人照明工作燈 Machine floodlight |
220V 20W 節電燈 |
220V 20W 節能環保燈 |
220V 20W 低碳燈 |
220V 20W 節能公司燈 |
|
脫離器直流無刷電機 Separator motor |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55 |
220V 50Hz 0.55-3KW |
220V 50Hz 0.55-3KW |
|
分割器排風量 Separator air volume |
8.5m3/min |
8.5m3/min |
8.5m3/min |
8.5m3/min |
|
解壓縮冷空氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
設備權重 Weight |
380kg |
380kg |
400kg |
380kg |
